Real-Time View

The Real-time view displays the Thumbnail. It can be displayed with controls located on the left side and on the right side. One large or four smaller thumbnails can be displayed.

To display this view from flight menu proceed as follows:

Select display buttons to select view.

Select to display the thumbnails.

Example of Real-time view

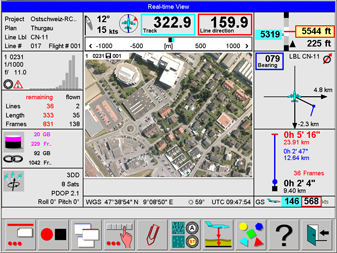

	Real-time view with controls during approach

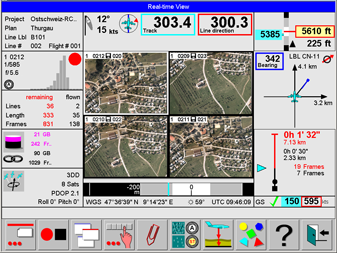

	Real-time view with controls on the line

Select to configure the Real-time view. See section Software (Global1) Configuration | Real-time-view.

Select to display more buttons related to the Real-time view

After More buttons is selected, the following buttons can be selected:

Select to toggle between display of one or four thumbnails.

Select or to change the contrast of the thumbnail.

Select or to change the brightness of the thumbnail.
