Views
Different views can be selected during flight execution. See section https://hexagon.atlassian.net/wiki/spaces/FPDOC/pages/45282754955/6.2.5%2BSoftware%2BGlobal2%2BConfiguration#View-Configuration. The views are composed of controls.
Controls
What is a control
A control is an area on a view which shows data and information that is relevant during flight execution. There are various type of controls.
System controls
-
Information about the hardware like Sensor, Memory, GNSS etc.
Flight guidance controls
-
Information to navigate.
General controls
-
Information about the project, Zoom factor of graphic displays etc.

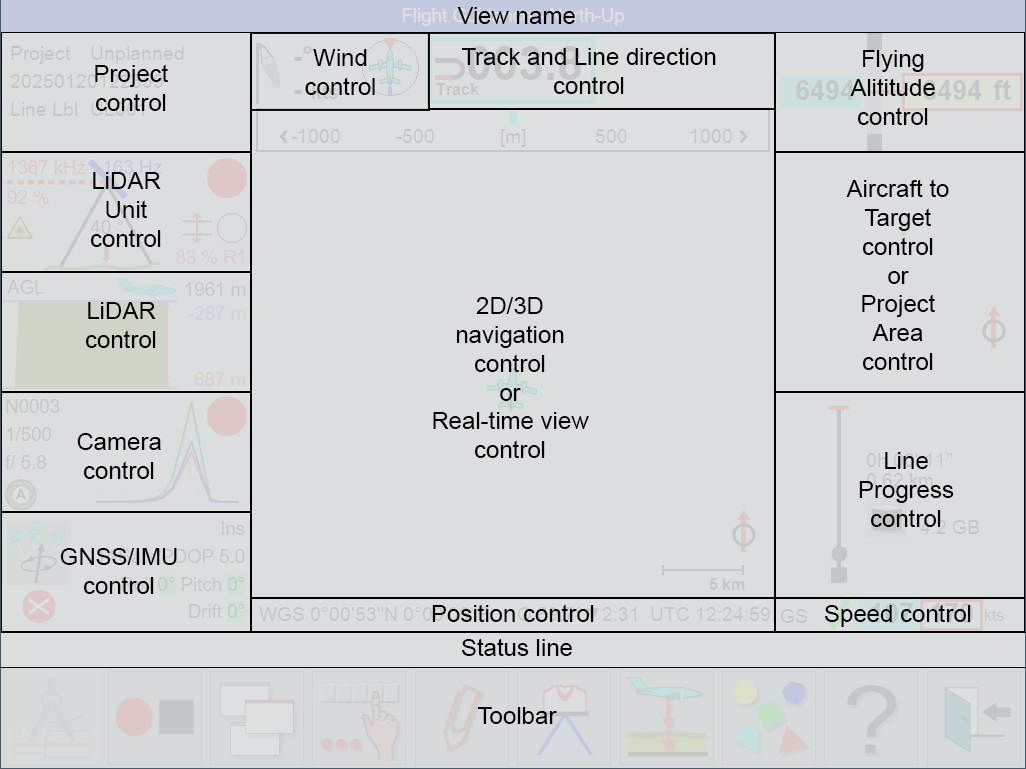

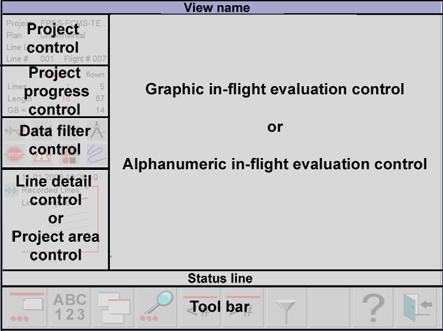

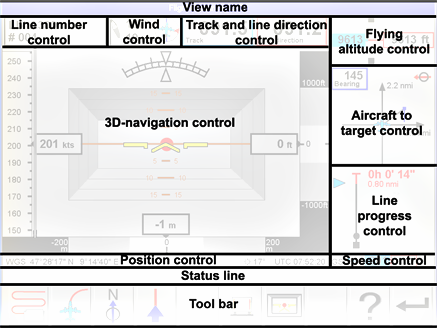

Controls on the navigation views
For more details on the various controls, see:
-
Project control see section Project Controls
-
Sensor control see section System controls
-
Project progress control see section https://hexagon.atlassian.net/wiki/spaces/FPDOC/pages/45282919192/6.2.5%2BProject%2BControls#Project-progress-control
-
Memory control see section https://hexagon.atlassian.net/wiki/spaces/FPDOC/pages/45282689605/6.2.5%2BSystem%2Bcontrols#Memory-control
-
GNSS control see section https://hexagon.atlassian.net/wiki/spaces/FPDOC/pages/45282689605/6.2.5%2BSystem%2Bcontrols#GNSS%2FIMU-control
-
Wind control see section https://hexagon.atlassian.net/wiki/spaces/FPDOC/pages/45282103382/6.2.5%2BFlight%2Bguidance%2Bcontrols#Wind-control
-
Track and line direction control see section https://hexagon.atlassian.net/wiki/spaces/FPDOC/pages/45282103382/6.2.5%2BFlight%2Bguidance%2Bcontrols#Track-and-line-direction-control
-
Position control see section https://hexagon.atlassian.net/wiki/spaces/FPDOC/pages/45282103382/6.2.5%2BFlight%2Bguidance%2Bcontrols#Position-Control
-
Nose-up navigation control see section https://hexagon.atlassian.net/wiki/spaces/FPDOC/pages/45282103382/6.2.5%2BFlight%2Bguidance%2Bcontrols#Nose-up-navigation-control
-
North-up navigation control see section https://hexagon.atlassian.net/wiki/spaces/FPDOC/pages/45282103382/6.2.5%2BFlight%2Bguidance%2Bcontrols#North-up-navigation-control
-
In-line navigation control see section https://hexagon.atlassian.net/wiki/spaces/FPDOC/pages/45282103382/6.2.5%2BFlight%2Bguidance%2Bcontrols#In-line-navigation-control
-
3-D Navigation view see section https://hexagon.atlassian.net/wiki/spaces/FPDOC/pages/45282103382/6.2.5%2BFlight%2Bguidance%2Bcontrols#3-D-Navigation-control
-
Real-time view control see section https://hexagon.atlassian.net/wiki/x/gQAwago
-
Flying altitude control see section https://hexagon.atlassian.net/wiki/spaces/FPDOC/pages/45282689605/6.2.5%2BSystem%2Bcontrols#Range-and-Height-control
-
Aircraft to target control see section https://hexagon.atlassian.net/wiki/spaces/FPDOC/pages/45282103382/6.2.5%2BFlight%2Bguidance%2Bcontrols#Aircraft-to-target-control
-
Line progress control see section https://hexagon.atlassian.net/wiki/spaces/FPDOC/pages/45282103382/6.2.5%2BFlight%2Bguidance%2Bcontrols#Line-progress-control
-
Speed control see section https://hexagon.atlassian.net/wiki/spaces/FPDOC/pages/45282103382/6.2.5%2BFlight%2Bguidance%2Bcontrols#Speed-control
-
Project control see section https://hexagon.atlassian.net/wiki/spaces/FPDOC/pages/45282919192/6.2.5%2BProject%2BControls#Project-control
-
Project progress control see section https://hexagon.atlassian.net/wiki/spaces/FPDOC/pages/45282919192/6.2.5%2BProject%2BControls#Project-progress-control
-
Data filter control see section https://hexagon.atlassian.net/wiki/spaces/FPDOC/pages/45282919192/6.2.5%2BProject%2BControls#Data-filter-control
-
Line detail control see section https://hexagon.atlassian.net/wiki/spaces/FPDOC/pages/45282919192/6.2.5%2BProject%2BControls#Line-detail-control
-
Project area control see section https://hexagon.atlassian.net/wiki/spaces/FPDOC/pages/45282919192/6.2.5%2BProject%2BControls#Project-area-control
-
Graphic in-flight evaluation control see section https://hexagon.atlassian.net/wiki/spaces/FPDOC/pages/45282919192/6.2.5%2BProject%2BControls#Graphic-in-flight-evaluation-control
-
Alphanumeric in-flight evaluation control see section https://hexagon.atlassian.net/wiki/spaces/FPDOC/pages/45282919192/6.2.5%2BProject%2BControls#Alphanumeric-in-flight-evaluation-control
