Once you are satisfied with the results, it is required to update the project with the triangulation results. Press "Accept Triangulation adjustment" available in the main toolbar.

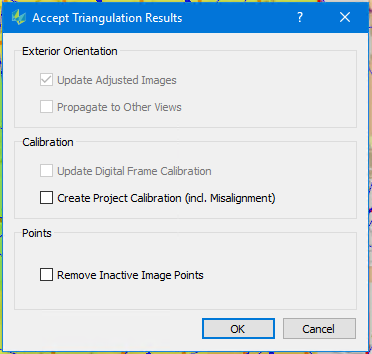

By accepting the results, the following options are available:
-
Exterior Orientation
-
Update Adjusted Images: HxMap updates the exterior orientation information per image, which is stored in the corresponding block(s). In detail, it will add *.eop.adj files in addition to the given exterior orientation information (*.eop).
-
Propagate to Other Views: This applies for Oblique systems only. The user can select if adjusted exterior orientation parameter derived from one view (e.g. Nadir) will be propagated to the other remaining views, which did not perceive an adjustment result. EOP propagation is only recommended, if there's a need for a fast solution with limited accuracy. Else include the other views into the triangulation and determine the EOPs per individual view.
-
-
Calibration
-
Update Digital Frame Calibration: If principal point or focal length are solved in the triangulation adjustment, the adjusted calibration parameter(s) will be added to the digital frame calibration. This information is stored in the block(s) used to setup the triangulation project. A new version of the digital frame calibration is added and will be used in product generation from that block.
-
Create Project Calibration (incl. Misalignment): if selected, HxMap writes out a full system calibration into ..\session\intermediate\cam\v001. This option is only available if Misalignment has been solved in the Triangulation Adjustment, and is not compatible with principle point or focal length correction. This new calibration can be used as a project calibration at Ingest time or may be added into the global calibration repository.
-
-
Remove Inactive Image Points
-
If checked, all points which were detected by bundle block adjustment as blunders and therefore set to inactive, are physically deleted. In detail, the point measurements are removed from the *.ipb files stored in the corresponding block(s) used to setup the triangulation project.
-
