Project Status Views for in-flight evaluation

Graphic and alphanumeric in-flight evaluation

To display this views from flight menu proceed as follows:

Select to enter main configuration dialog.

 Select to display project data.

Project data is displayed either graphically or numerically. To toggle, select the corresponding icon which is displayed on the toolbar alternatively.

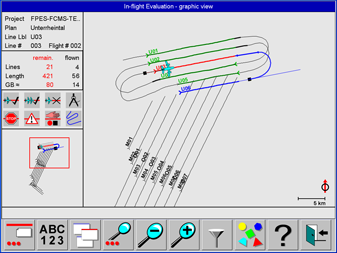

In-flight evaluation - graphic view

Select to display project data graphically.

This view provides a graphic project overview for inflight evaluation and control of project execution. The orientation is North-up.

A description of the controls displayed on this view is given in https://hexagon.atlassian.net/wiki/x/AwAxago and https://hexagon.atlassian.net/wiki/x/AYA2ago.

In the In-flight evaluation view lines can be selected by touching the line and the map can be panned by touching the graphics and dragging the map with the finger.

According to the configuration of the map layer for the Operator additional information like vector maps, GCP and GNSS ground reference station locations and bitmap maps or Elevation encoded or Shaded Relief DTM information might be displayed as background.

Footprints of flight lines are displayed if SRTM DTM data are installed for the displayed area. Map layer configuration see section Software (Global1) Configuration | Guidance-Project.

Examples see section https://hexagon.atlassian.net/wiki/x/lgAwago.

Select to display a secondary toolbar to set/reset filters to hide/show information

Filters to query project and flight data

Icon	Purpose
	Show flight lines flown once
	Hide flight lines flown once
	Show flight lines flown more than once
	Hide flight lines flown more than once
	Show flown flight lines with warnings
	Hide flown flight lines with warnings
	Show flown flight lines with errors
	Hide flown flight lines with errors
	Show flight lines not yet flown
	Hide flight lines not yet flown
	Show unplanned flight lines
	Hide unplanned flight lines
	Show flight planning.
	Hide flight planning.
	Show aircraft flight path.
	Hide aircraft flight path.

Select to display another secondary toolbar.

After is selected, the following buttons are shown:

Use and to pan the map in the North-up view to the left or the right.

The map can also be panned by touching the map and dragging the map with a finger.

Use and to pan the map in the North-up view to the left or the right.

The map can also be panned by touching the map and dragging the map with a finger.

 Select or to zoom out or zoom out the graphics in the Nose-up view.

 Select for automatic scale adjustment. The whole project area will be displayed in the North-up view.

 Select to pan the map so that the aircraft is displayed in the centre of the North-up view.

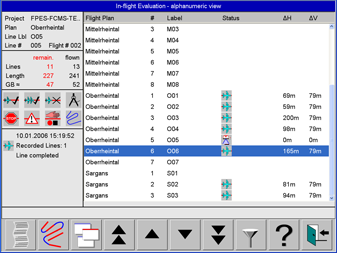

In-flight evaluation - alphanumeric view

Select to display project data alphanumerically.

This view is for in-flight evaluation. It lists for each flight line the most relevant data.

A description of the controls displayed on this view is given in https://hexagon.atlassian.net/wiki/x/AwAxago and in https://hexagon.atlassian.net/wiki/x/AYA2ago.

Select to browse log data.

Select or to browse the list page by page.

Select or to move the highlighted bar in the list.

Select to display a secondary toolbar to set/reset filters to hide/show information

The settings are given in Project Status Views for in-flight evaluation | Filters-to-query-project-and-flight-data .
