Image Index Viewer

The Image Index Viewer allows to assess radiometry for a selection of images in the project. Images displayed in the viewer are oriented relative to ground space. Two image scaling modes are possible to support assessment of individual images within a strip and between strips.

Controls for Image Index Viewer

Task

Steps

Example

Load Images to Viewer

  1. Select images in Map Window (e.g. by Perspective Centers) or Data Source

  2. Load selected images by:

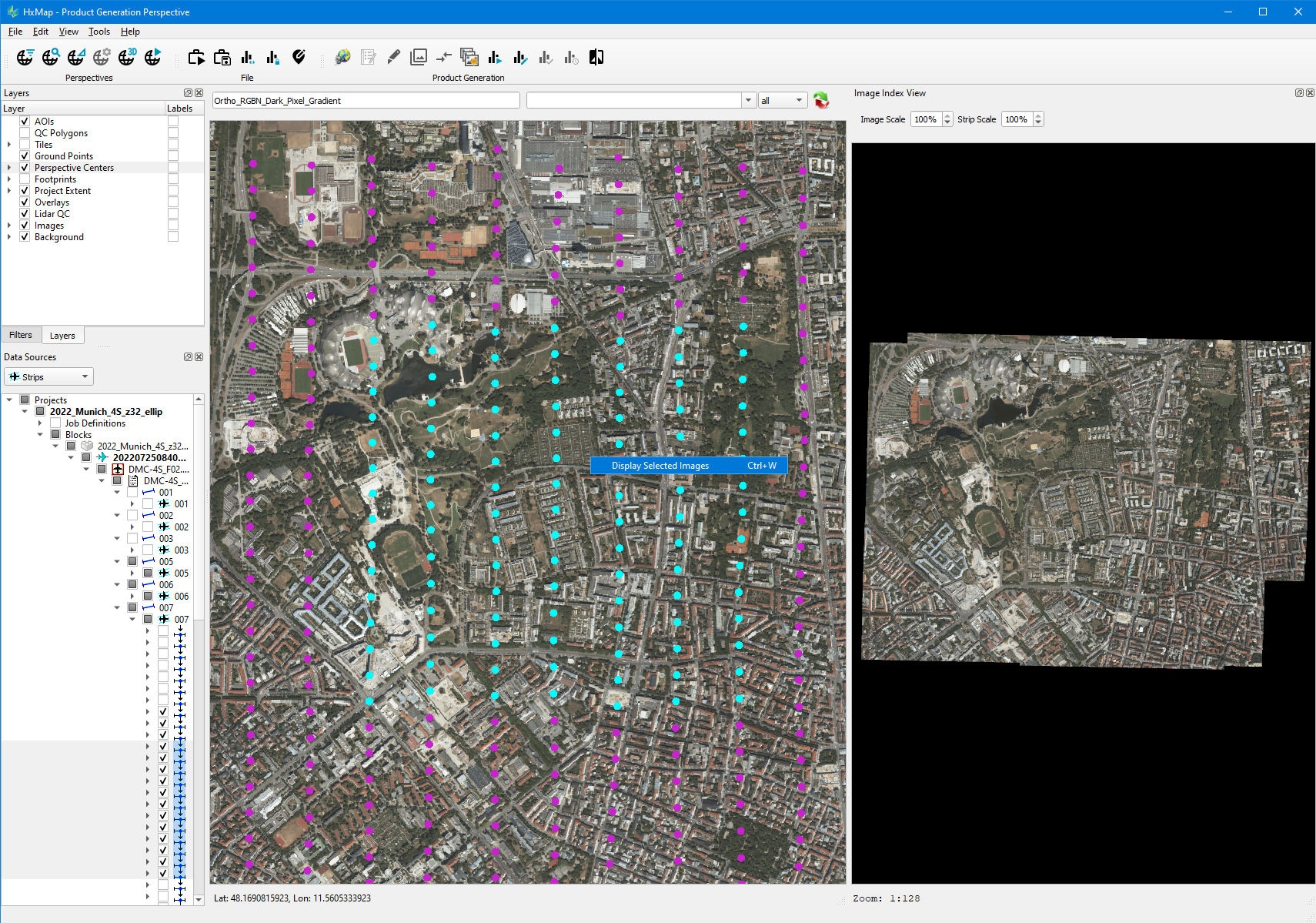

    1. Right mouse button context menu in Map Window, Display Selected Images

    2. Keyboard shortcut Ctrl+W

  3. 100 images will be loaded by default. The image limit can be adjusted as described in https://hexagonmi.atlassian.net/wiki/spaces/HEXMAPDOC/pages/44131163946/Application+Settings#Product-generation

  4. Keyboard shortcut for image loading can be modified Defining keyboard shortcuts

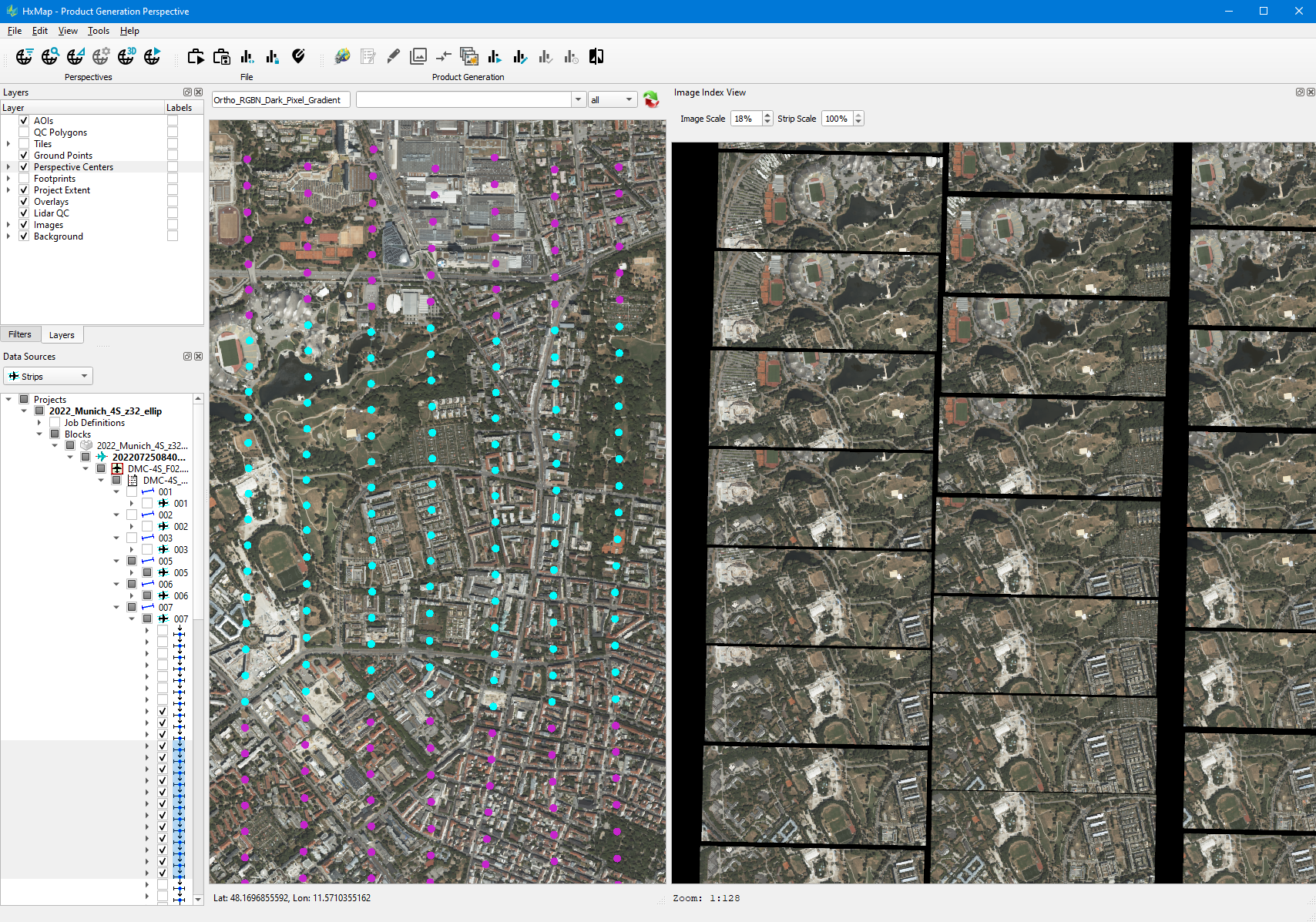

Scale Images in Viewer

  1. Adjust the Image Scale by Shift + mouse scroll wheel or the key-in field

  2. Adjust the Strip Scale by Ctrl + mouse scroll wheel or the key-in field

  3. Adjust view zoom level by mouse scroll wheel

  4. Mouse settings for Image and Strip scale can be modified https://hexagonmi.atlassian.net/wiki/spaces/HEXMAPDOC/pages/44131163769/Zooming+and+Panning#Mouse-Settings


  • Only Nadir image swaths will be displayed in the Image Index Viewer
