Exporting 3D models

The 3D Model products generated by HxMap are delivered in an internal *.tdc file format. The TDC format is required by the HxMap 3D Editor and process of texturing. In order to use the final 3D model objects in a GIS environment or other 3rd party software, it's useful to convert the data into a common format. The Export 3D model tool allows converting TDC into OBJ or CityGML file format.

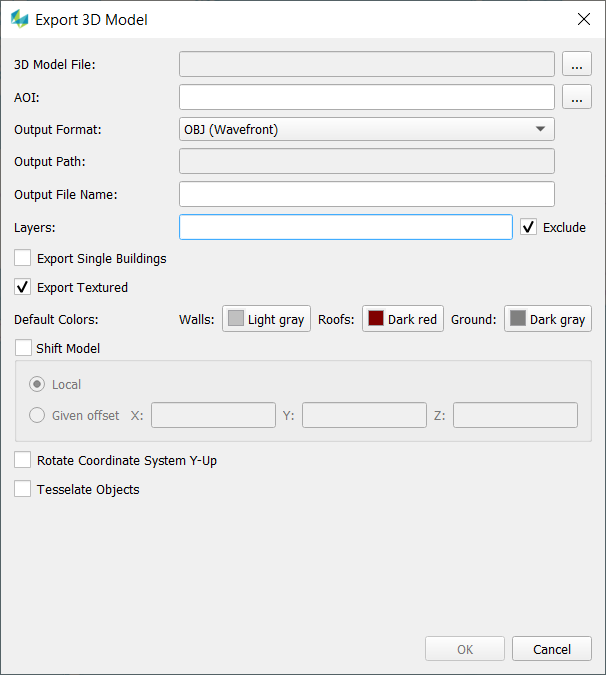

After selecting a 3D Model file (*.tdc) you have following options:

• Customize the output path

• Define an AOI (*.shp).

  • If no AOI is defined the whole area of the input data are exported.

  • If the shape file contains multiple polygons multiple export files will be generated.

• Pick the desired output format

• Define layers to be in-/excluded (e.g. 1,3, 5-9)

• Export objects as single building files (Object ID is used to define which parts belong to one building)

• Define default colors for untextured roof, wall or ground faces

• The OBJ export has additional options:

  • Shift of the 3D Model to a local origin or with a given offset

  • Rotation of the coordinate system (Y-Up) and a new tessellation of the geometry is possible.

• CityGML can be exported in version 1.0 and 2.0. The spatial reference system can be defined by a text string (srsName) but the correctness will not be checked.
